# System Hardware

## Oscar Specifications

|                     |       |
| ------------------- | ----- |
| **Compute Nodes**   | 330   |
| **Total CPU Cores** | 28608 |
| **GPU Nodes**       | 116   |
| **Total GPUs**      | 971   |

## Compute Nodes

Oscar has compute nodes in the partitions listed below.

* **batch** - The batch partition is for programs/jobs which need neither GPUs nor large memory.
* **bigmem** - The bigmem partition is for programs/jobs which require large memory.
* **debug** - The debug partition is for users to debug programs/jobs.
* **gpu** - The gpu partition is for programs/jobs which require GPUs.
* **gpu-debug** - The gpu-debug partition is for users to debug gpu programs/jobs.
* **gpu-he** -The gpu-he partition is for programs/jobs which need to access high-end GPUs.
* **vnc** - The vnc partition is for users to run programs/jobs in an graphical desktop environment.

Below are node details including cores and memory for all partitions.

| **Partition** | <p><strong>Total</strong><br><strong>Nodes</strong></p> | <p><strong>Total</strong><br><strong>Cores</strong></p> | <p><strong>Cores</strong><br><strong>Per Node</strong></p> | <p><strong>Total</strong><br><strong>GPUs</strong></p> | <p><strong>Memory Per</strong><br><strong>Node (GB)</strong></p> |
| ------------- | ------------------------------------------------------- | ------------------------------------------------------- | ---------------------------------------------------------- | ------------------------------------------------------ | ---------------------------------------------------------------- |
| batch         | 288                                                     | 12800                                                   | 24-192                                                     | n/a                                                    | 190-1540                                                         |
| gpu           | 64                                                      | 5000                                                    | 24-128                                                     | 519                                                    | 190-1028                                                         |
| gpu-he        | 12                                                      | 552                                                     | 24-64                                                      | 84                                                     | 190-1028                                                         |
| debug         | 2                                                       | 96                                                      | 48                                                         | n/a                                                    | 382                                                              |
| gpu-debug     | 1                                                       | 48                                                      | 48                                                         | 8                                                      | 1028                                                             |
| vnc           | 303                                                     | 13696                                                   | 24-192                                                     | 40                                                     | 102-1540                                                         |
| viz           | 1                                                       | 48                                                      | 48                                                         | 8                                                      | 1028                                                             |

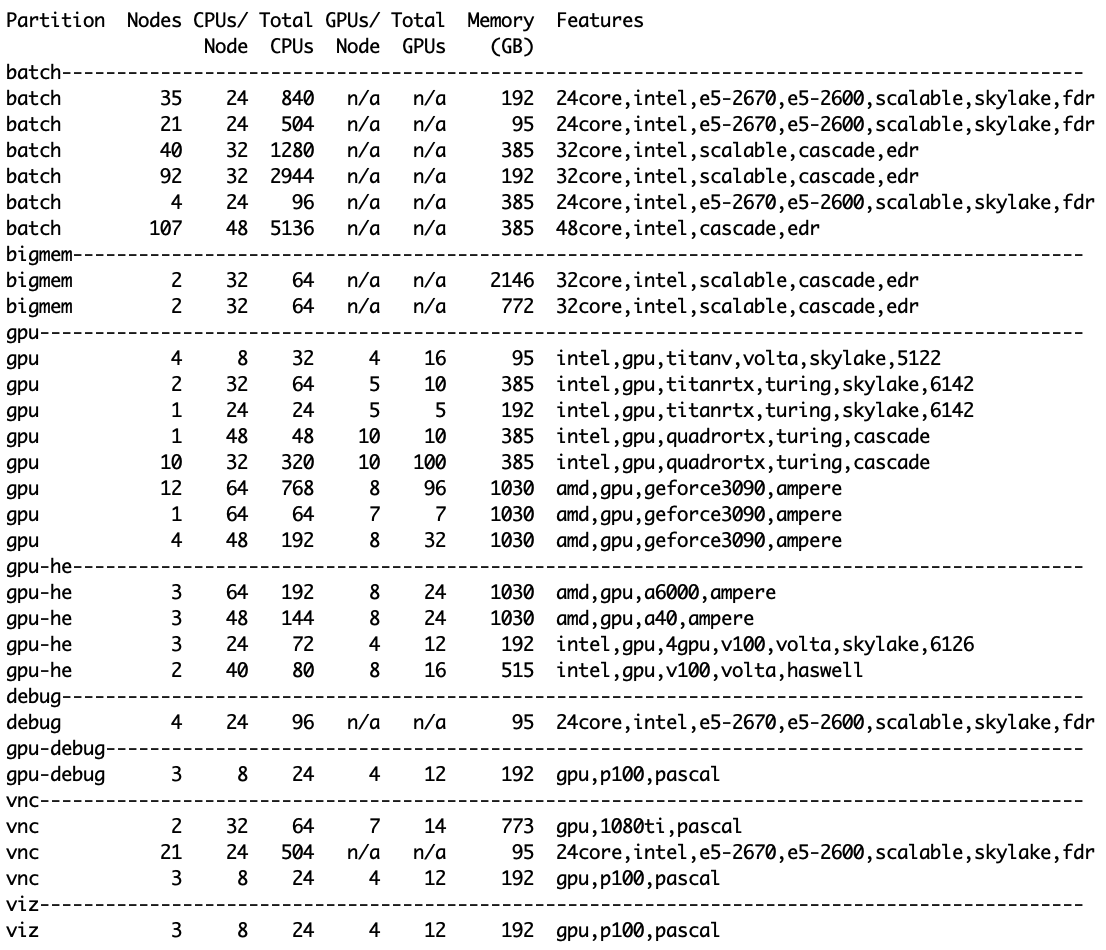

## Hardware details

Hardware details for all partitions. The Features column shows the features available for the --constraint option for SLURM. This includes the available CPU types as well GPUs.

<table><thead><tr><th width="105">Partition</th><th width="70">Nodes</th><th width="77">CPUS/ Node</th><th width="77">Total CPUs</th><th width="58">GPUs/ Node</th><th width="72">Total GPUs</th><th width="84">Memory (GB)</th><th>Features</th></tr></thead><tbody><tr><td>batch</td><td>100</td><td>32</td><td>3200</td><td>n/a</td><td>n/a</td><td>190</td><td>32core, intel, scalable, cascade, edr</td></tr><tr><td>batch</td><td>122</td><td>48</td><td>5856</td><td>n/a</td><td>n/a</td><td>382</td><td>48core, intel, cascade, edr</td></tr><tr><td>batch</td><td>40</td><td>32</td><td>1280</td><td>n/a</td><td>n/a</td><td>382</td><td>32core, intel, scalable, cascade, edr, cifs</td></tr><tr><td>batch</td><td>10</td><td>192</td><td>1920</td><td>n/a</td><td>n/a</td><td>1540</td><td>192core, amd, genoa, edr</td></tr><tr><td>batch</td><td>4</td><td>64</td><td>256</td><td>n/a</td><td>n/a</td><td>514</td><td>64core, intel, icelake, edr</td></tr><tr><td>batch</td><td>2</td><td>24</td><td>48</td><td>n/a</td><td>n/a</td><td>770</td><td>24core, intel, e5-2670, e5-2600, scalable, skylake, fdr</td></tr><tr><td>batch</td><td>10</td><td>24</td><td>240</td><td>n/a</td><td>n/a</td><td>382</td><td>24core, intel, e5-2670, e5-2600, scalable, skylake, fdr</td></tr><tr><td>bigmem</td><td>4</td><td>32</td><td>128</td><td>n/a</td><td>n/a</td><td>770</td><td>32core, intel, scalable, cascade, edr</td></tr><tr><td>bigmem</td><td>2</td><td>192</td><td>384</td><td>n/a</td><td>n/a</td><td>1540</td><td>192core, amd, genoa, edr</td></tr><tr><td>gpu</td><td>2</td><td>32</td><td>64</td><td>5</td><td>10</td><td>382</td><td>intel, gpu, titanrtx, turing, skylake, 6142</td></tr><tr><td>gpu</td><td>1</td><td>24</td><td>24</td><td>5</td><td>5</td><td>190</td><td>intel, gpu, titanrtx, turing, skylake, 6142</td></tr><tr><td>gpu</td><td>1</td><td>48</td><td>48</td><td>10</td><td>10</td><td>382</td><td>intel, gpu, quadrortx, turing, cascade</td></tr><tr><td>gpu</td><td>10</td><td>32</td><td>320</td><td>10</td><td>100</td><td>382</td><td>intel, gpu, quadrortx, turing, cascade</td></tr><tr><td>gpu</td><td>13</td><td>64</td><td>832</td><td>8</td><td>104</td><td>1028</td><td>amd, gpu, geforce3090, ampere</td></tr><tr><td>gpu</td><td>4</td><td>48</td><td>192</td><td>8</td><td>32</td><td>1028</td><td>amd, gpu, geforce3090, ampere</td></tr><tr><td>gpu</td><td>7</td><td>128</td><td>896</td><td>8</td><td>56</td><td>1028</td><td>amd, cifs, gpu, a5500, ampere</td></tr><tr><td>gpu</td><td>10</td><td>64</td><td>640</td><td>8</td><td>80</td><td>1028</td><td>amd, cifs, gpu, a5000, ampere</td></tr><tr><td>gpu</td><td>10</td><td>128</td><td>1280</td><td>8</td><td>80</td><td>1028</td><td>amd, cifs, gpu, a5000, ampere</td></tr><tr><td>gpu</td><td>1</td><td>64</td><td>64</td><td>2</td><td>2</td><td>1028</td><td>amd, gpu, a5000, ampere</td></tr><tr><td>gpu</td><td>2</td><td>128</td><td>256</td><td>8</td><td>16</td><td>1028</td><td>amd, gpu, a5500, cifs, ampere</td></tr><tr><td>gpu</td><td>3</td><td>128</td><td>384</td><td>8</td><td>24</td><td>1028</td><td>amd, gpu, cifs, a5000, ampere</td></tr><tr><td>gpu-he</td><td>3</td><td>48</td><td>144</td><td>8</td><td>24</td><td>1028</td><td>amd, gpu, a40, ampere</td></tr><tr><td>gpu-he</td><td>3</td><td>24</td><td>72</td><td>4</td><td>12</td><td>190</td><td>intel, gpu, 4gpu, v100, volta, skylake, 6126</td></tr><tr><td>gpu-he</td><td>4</td><td>64</td><td>256</td><td>8</td><td>32</td><td>1028</td><td>amd, gpu, a6000, ampere</td></tr><tr><td>gpu-he</td><td>2</td><td>40</td><td>80</td><td>8</td><td>16</td><td>512</td><td>intel, cifs, gpu, v100, volta, haswell</td></tr><tr><td>debug</td><td>2</td><td>48</td><td>96</td><td>n/a</td><td>n/a</td><td>382</td><td>48core, intel, cascade, edr</td></tr><tr><td>gpu-debug</td><td>1</td><td>48</td><td>48</td><td>8</td><td>8</td><td>1028</td><td>amd, gpu, geforce3090, ampere</td></tr><tr><td>vnc</td><td>100</td><td>32</td><td>3200</td><td>n/a</td><td>n/a</td><td>190</td><td>32core, intel, scalable, cascade, edr</td></tr><tr><td>vnc</td><td>134</td><td>48</td><td>6432</td><td>n/a</td><td>n/a</td><td>382</td><td>48core, intel, cascade, edr</td></tr><tr><td>vnc</td><td>1</td><td>64</td><td>64</td><td>8</td><td>8</td><td>1028</td><td>amd, cifs, gpu, a5000, ampere</td></tr><tr><td>vnc</td><td>2</td><td>128</td><td>256</td><td>16</td><td>32</td><td>102</td><td>amd, gpu, a2, ampere</td></tr><tr><td>vnc</td><td>40</td><td>32</td><td>1280</td><td>n/a</td><td>n/a</td><td>382</td><td>32core, intel, scalable, cascade, edr, cifs</td></tr><tr><td>vnc</td><td>10</td><td>192</td><td>1920</td><td>n/a</td><td>n/a</td><td>1540</td><td>192core, amd, genoa, edr</td></tr><tr><td>vnc</td><td>4</td><td>64</td><td>256</td><td>n/a</td><td>n/a</td><td>514</td><td>64core, intel, icelake, edr</td></tr><tr><td>vnc</td><td>2</td><td>24</td><td>48</td><td>n/a</td><td>n/a</td><td>770</td><td>24core, intel, e5-2670, e5-2600, scalable, skylake, fdr</td></tr><tr><td>vnc</td><td>10</td><td>24</td><td>240</td><td>n/a</td><td>n/a</td><td>382</td><td>24core, intel, e5-2670, e5-2600, scalable, skylake, fdr</td></tr><tr><td>viz</td><td>1</td><td>48</td><td>48</td><td>8</td><td>8</td><td>1028</td><td>amd, gpu, geforce3090, ampere</td></tr></tbody></table>

## GPU Features and GPU Memory

<table><thead><tr><th width="333.3333333333333">GPU Features</th><th>GPU Memory</th></tr></thead><tbody><tr><td>b200</td><td>192 GB</td></tr><tr><td>h100</td><td>80 GB</td></tr><tr><td>a100</td><td>80 GB</td></tr><tr><td>l40s</td><td>48 GB</td></tr><tr><td>a6000</td><td>48 GB</td></tr><tr><td>a40</td><td>45 GB</td></tr><tr><td>v100</td><td>32 GB</td></tr><tr><td>a5000</td><td>24 GB</td></tr><tr><td>quadrortx</td><td>24 GB</td></tr><tr><td>titanrtx</td><td>24 GB</td></tr><tr><td>geforce3090</td><td>24 GB</td></tr><tr><td>p100</td><td>12 GB</td></tr><tr><td>titanv</td><td>12 GB</td></tr><tr><td></td><td></td></tr></tbody></table>
