  1. XNAT

Downloading Data

Details of the different options available to download your data from XNAT

PreviousUploading DataNextIntroduction

Last updated 1 year ago

Was this helpful?

Summary of tools and methods to download your data

Method/Tool
Recommended Usage
Requirements

Download via UI

Downloading DICOM data that is not super large and when pausing, resuming is not needed.

Browser (campus network)

Download via XNAT Desktop Client

Download DICOM data with greater granularity and for large number of participants. Pausing, resumming and reporting is available

App installed. Doesn't work in OSCAR

Download via xnat-tools python package

Programmatic download. Great for batch uploads and for combining with BIDS conversion

1. Download via Web UI

This is the simplest but slowest way to download data. If you'll be downloading multiple imaging sessions, you may want to refer to other options below

1.1 Navigate to your MR Data Session

1.2 Download ONE sequence

If you only need to download one sequence, you can use the download button on the corresponding row

1.3 Download ALL sequences

You have multiple options here

1.3.1 Select ALL and use the download bulk action

Depending on the size of your data, this may take a while

1.4 Download with granularity

If you wish to have greater granularity on the types of resources downloaded you can use the menu under Actions -> Download -> Images. We will dive a little more into the options on the next section, as this is gives a great segway into talking about

2. Downloading via XNAT Desktop Client

3. Download data programmatically

Installation of xnat-tools python package. This can be done from local computer or Oscar as explained in the

The is a convenient way to upload and download data to XNAT. Unfortunately, at this time, the application doesn't work in Oscar, but if you are downloading data to your personal computer, you may want to give it a try.

The for the Desktop Client is quite detailed, so we won't repeat the steps here.

We maintain a python package that facilitates downloading your data and converting it to BIDS. The optimal way to install and run the code depends on your computation environment. The package explains different installation and execution methods for a general user.

If you do not need BIDS, you'll only need the utility. If you will be downloading and converting to BIDS, then please follow the instructions in the section.

XNAT Desktop Client
documentation
xnat-tools
documentation
xnat-dicom-export
XNAT TO BIDS
XNAT2BIDS section
MR session list for a given participant
Highlighting download button for a single sequence

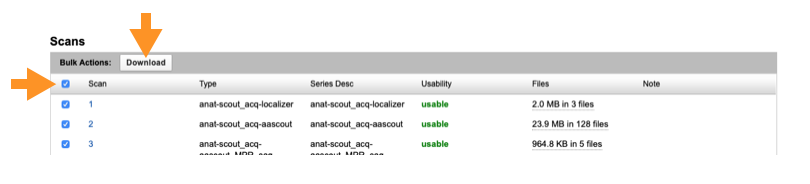

Highlighting SELECT ALL and BULK DOWNLOD BUTTONS
Highlighting the Actions -> Download menu to access detailed downloading options
