  1. XNAT to BIDS

Getting Started

PreviousBasic analysis example: checks taskNextXNAT2BIDS Software

Last updated 10 months ago

Was this helpful?

We provide custom code and sample data to export your XNAT imaging session to BIDS format. Our process relies on few basic principles:

  • Naming of sequences in a BIDS friendly manner at the scanner as outined in the

  • DICOMS exported from XNAT using our software is converted to BIDS using

  • We rely on the specification and heuristic

  • Our code is available in the

Requirements

Before exporting, you'll need to have available, XNAT authentication and session information as well as our software.

1. Familiarize with BNC's Demo Dataset

We will use the in the following walk-through examples. It is helpful to be familiar with the general description and protocol details of the data

1. XNAT Login Information

If you have not registered to use our XNAT, please follow instructions

  • XNAT Username

  • XNAT Password

2. Image Session Identifier

In order to export an imaging session, we need to find XNAT's ID for that session. You can do so as follows:

2.1 Navigate to project of interest

2.2 Navigate to subject of interest

2.3 Navigate to MR Session

2.4. Find Accession #

BIDS Ready Protocols section.
Heudiconv
ReproIn
xnat-tools repository
BNC's Demo Dataset
here
Participants associated with a project

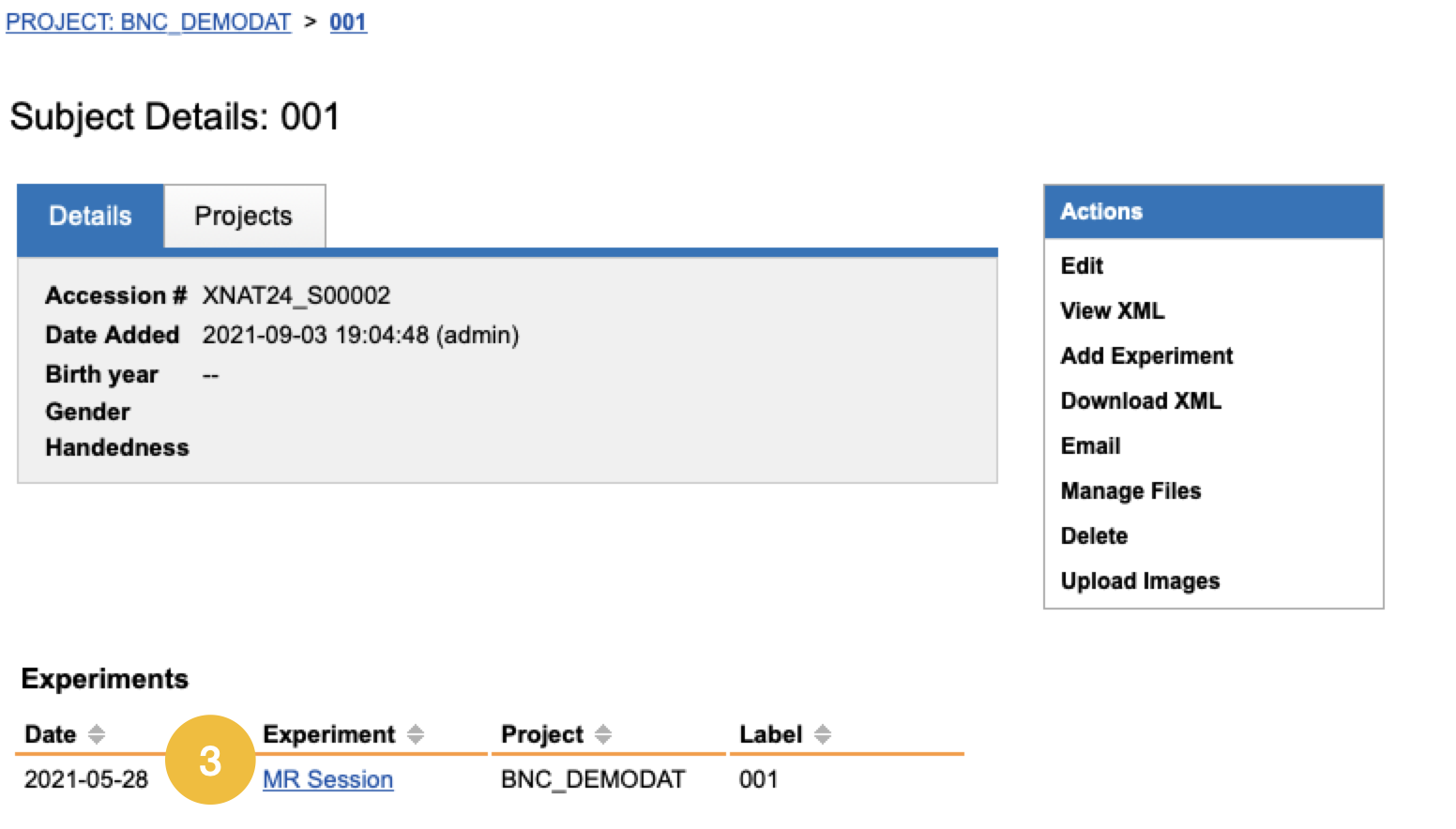

MR Sessions associated with a participant
Accession # for a session
